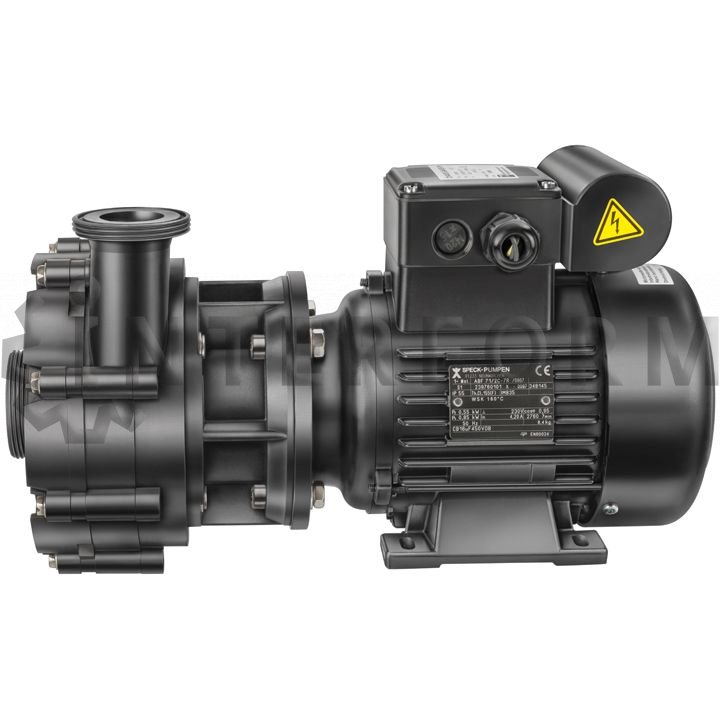

Centrifugal pumps BADU 21-40
APPLICATION
Jet pump for jetted bath tubs, whirlpools.
Massage stations, air conditioning and cleaning units with a flow rate of up to 30 m³/h.
Technical parameters
Model: BADU 21-40
Series: BADU 21
Pumped medium: Water, Waste water without solids content
Engine: 0.55 – 1.5 kW
Consumption m³/h: 11 - 23 max.
Feed height m: 10 – 14 max.
Realization
Seal type: Mechanical seal: carbon / ceramic / NBR
Available designations for this series
BADU 21-40/53 G
BADU 21-40/53H G
BADU 21-40/54 G
BADU 21-40/54H G
BADU 21-40/55 G
BADU 21-40/55H G
BADU 21-40/56 G
BADU 21-40/56H G
BADU 21-40/58 G
BADU 21-40/58H G
Description:
Monoblock-type pump with a bellow-type mechanical seal mounted on a plastic shaft protector sleeve.
- Motor/pump shaft has no contact with the pool water providing complete electrical separation.
- Discharge outlet swivels gradually by 90°.
- The unit may be installed in a vertical position with the pump facing downwards. Threaded inlet and outlet connections suitable for special union.
