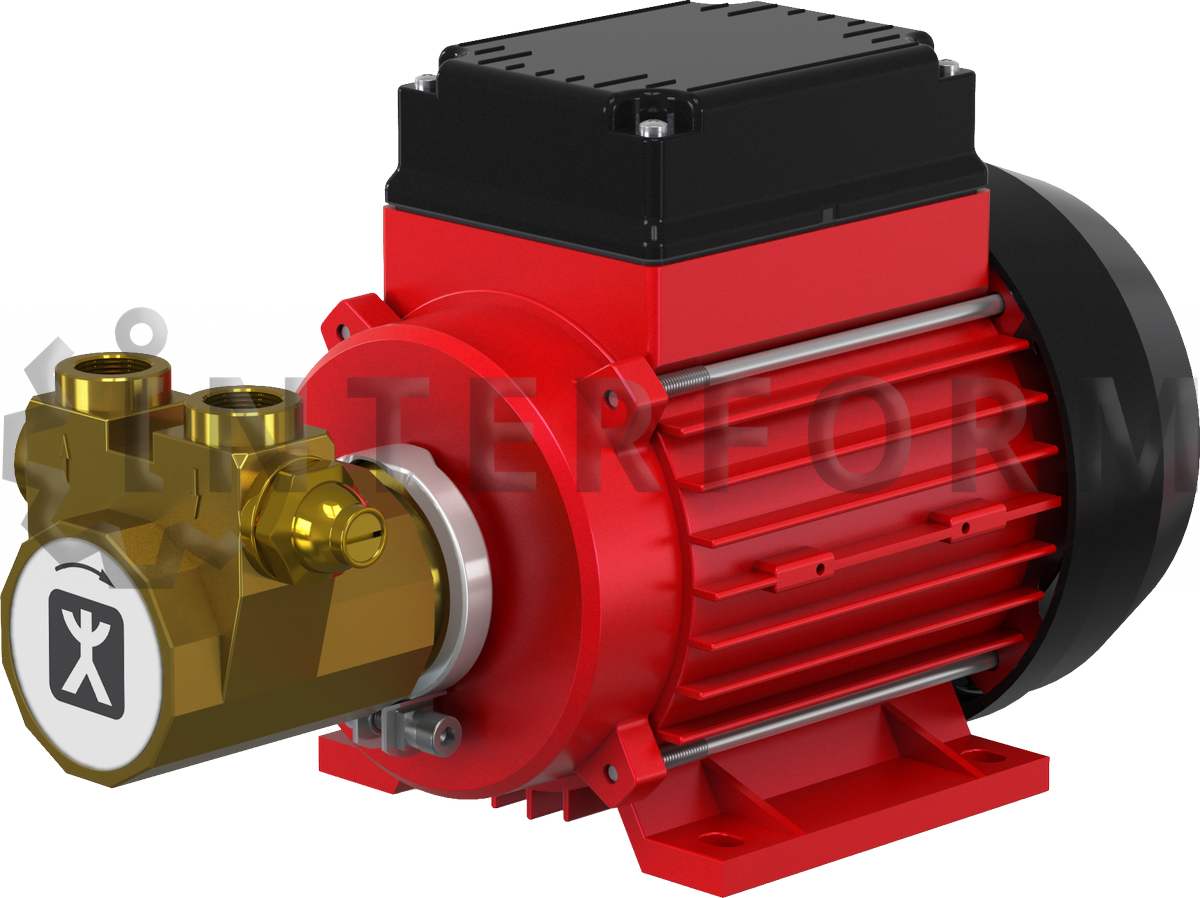

Roller vane pump Speck Pumpen DS-180
APPLICATION
Agriculture - Delivery of propionic acid for corn preservation.
Further applications - Purification of drinking-water by means of reverse osmosis.
Beverage industry - Carbonisation of beverages in drink dispensers.
Railcars - Windscreen washer system in railcars.
Technical parameters
Model: DS-180
Series: DS
Pumped medium: Water – max.70°C
Engine: 0.30 – 0.75 kW / 3~Mot
0.30 – 0.90 kW / 1~Mot
0.30 – 0.90 kW / 1~Mot
Realization
Material: Brass, Stainless steel
Pressure line: G 3/8; G 1/2
Input line: G 3/8; G 1/2
Seal type: Mechanical seal
Description:
Roller vane pumps
- Close-coupled
- Selfpriming
Steep characteristic curve
Easy installation
Only little volume differences over the entire pressure range due to displacement principle
50Hz: max. 14bar / 16 l/min
