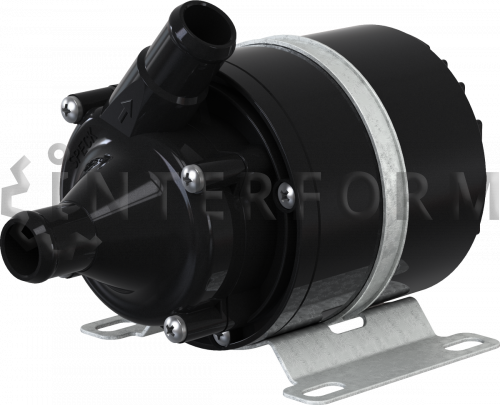

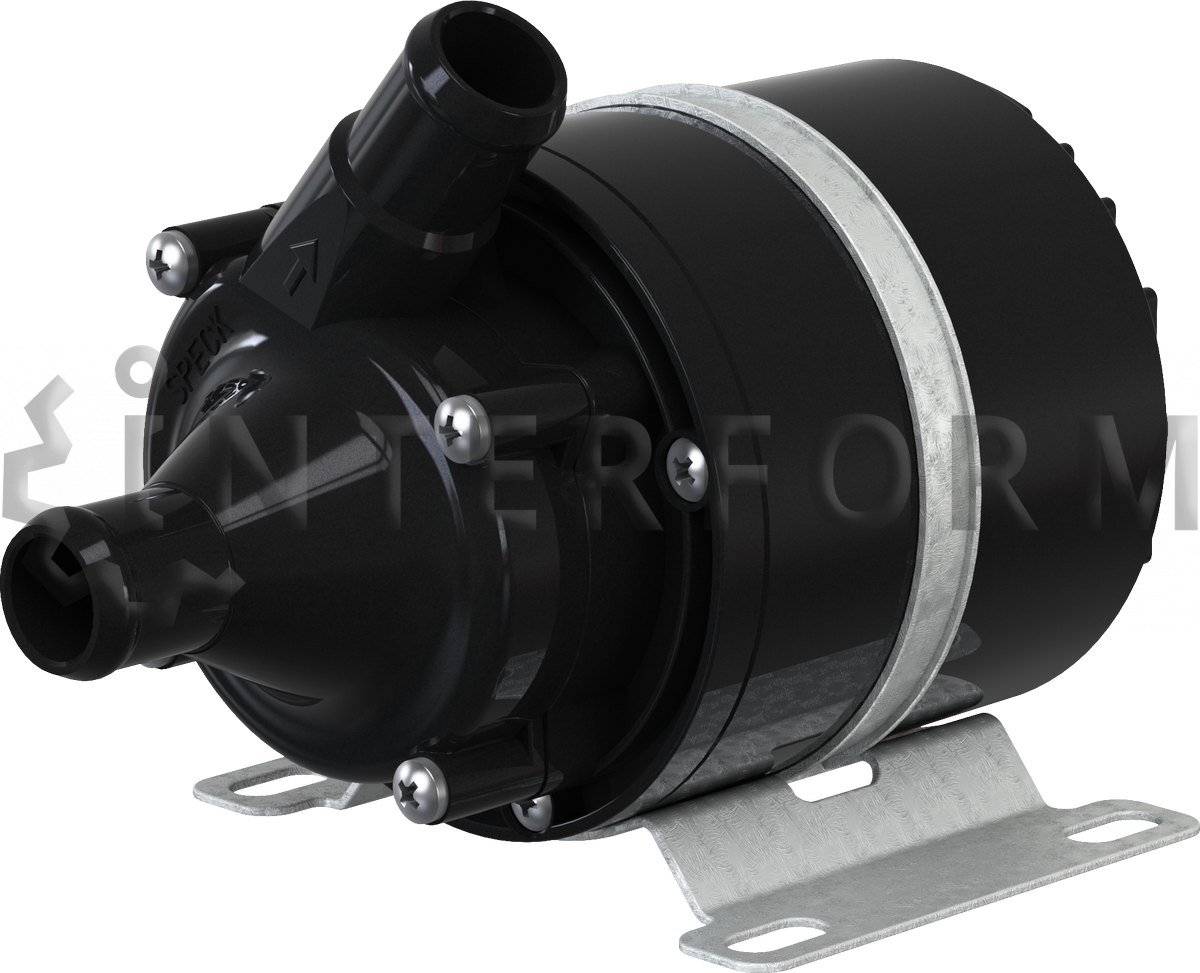

Centrifugal pump Speck Pumpen MY-3-MM
APPLICATION
Air-conditioning of passenger compartment in trucks and buses.
Air-conditioning of passenger compartment in vehicles with fuel cell power plants.
Delivery of cold brine.
Technical parameters
Model: MY-3-MM
Series: MY
Pumped medium: Water/glycol-mixture – max.80°C
Engine: 24 V, max. 180W, 2000 - 6500 1/min, EC
Realization
Material: Plastics
Pressure line: ø 20 / 28 mm
Input line: ø 20 / 28 mm
Seal type: Separating can / Canned motor
Size: 88 x 104 x 154 - 161 mm
Description:
Close-coupled pumps with ec motor
- Canned motor
- Parameters set by the manufacturer
- Power consumption depending on load and speed
- Within the displayed characteristic curve, every operating point can be selected by parameterizing the drive accordingly
Compact design
Long service life due to sealless version and bearingless motor
