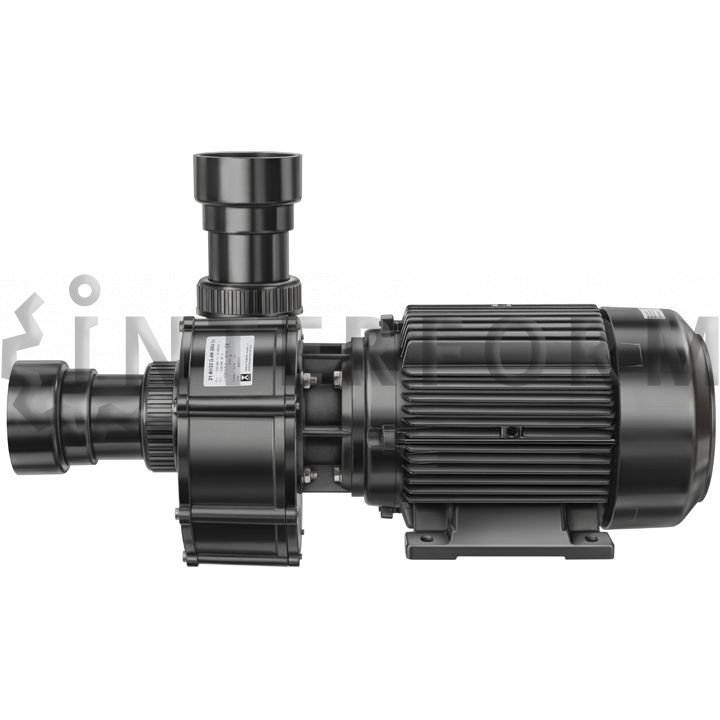

Centrifugal pumps BADU 21-81
APPLICATION
Pool and industrial filtration units, counter swim units, air conditioning units.
Pool attractions, cleaning units and many other applications with a flow rate of up to 90 m³/h.
Technical parameters
Model: BADU 21-81
Series: BADU 21
Pumped medium: Water, Waste water without solids content
Engine: 1.6 – 4.0 kW
Consumption m³/h: 40 – 103 max.
Feed height m: 8 – 10 max.
Realization
Seal type: Mechanical seal: carbon / ceramic / NBR
Available designations for this series
BADU 21-81/31R G
BADU 21-81/32 G
BADU 21-81/32R G
BADU 21-81/33 G
BADU 21-81/34
Description:
Monoblock-type pump with a bellow-type mechanical seal mounted on a plastic shaft protector sleeve.
- Discharge outlet swivels gradually by 90° and additionally by 29° clockwise when viewing the pump from the suction side.
- Complete electrical separation.
