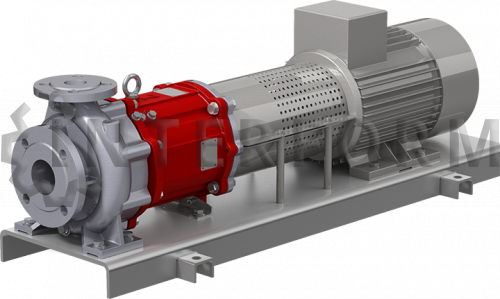

Heat transfer pumps with magnetic coupling

Model: TOEMN, TOEMA, TOEMI

Series: TOEMN, TOEMA, TOEMI

Pumped medium: Spheroidal graphite cast iron version:
Thermal oil -40 – +350 °C
Stainless steel version:
Thermal oil -100 – +250 °C

Engine: 50Hz: 2900 1/min,
max. 100 m / 540 m3/h
60Hz: 3500 1/min,
max.100 m / 460 m3/h

Material: Stainless steel, Spheroidal graphite cast iron

Pressure line: DN32-DN125

Input line: DN50-DN150

Seal type: Separating can / Magnetic drive

TOE-MN-40-160
TOE-MA-100-200
TOE-MA-40-160
TOE-MI-40-160

Request a price

Heat transfer pumps with magnetic coupling

Interchangeability of many parts at all series
Same hydraulics for TOEGN, TOEGA, TOEMN & TOEMA series
Same hydraulics for TOEGI and TOEMI series
Synthetic heat transfer media with low viscosities are delivered without any problems up to 350 °C
Hydrodynamically lubricated sleeve bearing in SiC
Low-wear impeller side chamber
