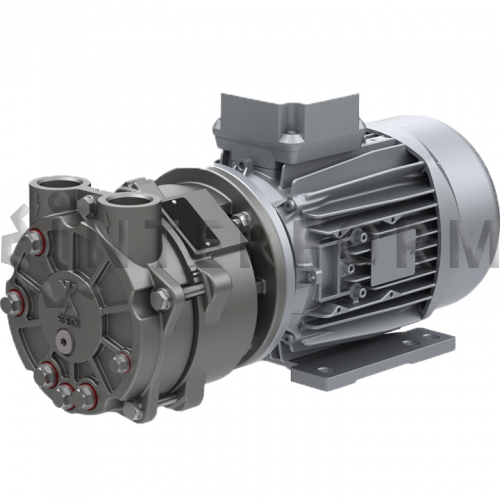

Liquid ring vacuum pump V-30/55
APPLICATION
Medical engineering:
Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization).
Plastics industry:
Extruder degasification. Vacuum calibration for the manufacturing of plastic profiles.
Food industry / Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Degasification (oxygen deprivation) of meat and sausage products.
Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam.
Technical parameters
Model: V-30/55
Series: V - serie
Pumped medium: dry and humidified gases
operational liquid max. 80 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
operational liquid max. 80 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 1.10 - 1.50 kW / 2850 min (230/400V)
Consumption m³/h: 26 - 48 max.
Nominal pressure: P min = 33 mbar
Realization
Material: Stainless Steel, Cast Iron, Copper Alloy
Pressure line: G 3/8 - DN 65
Input line: G 3/8 - DN65
Seal type: Mechanical seal
Description:
V Series – The All-rounders
- Single-stage pumps with valve technology
Tried-and-tested robust design
Low investment costs due to close coupled version
