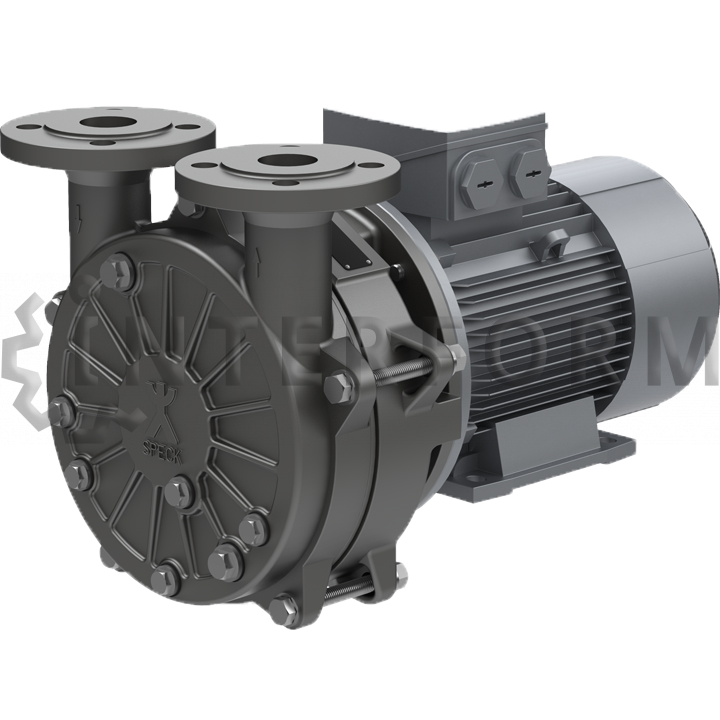

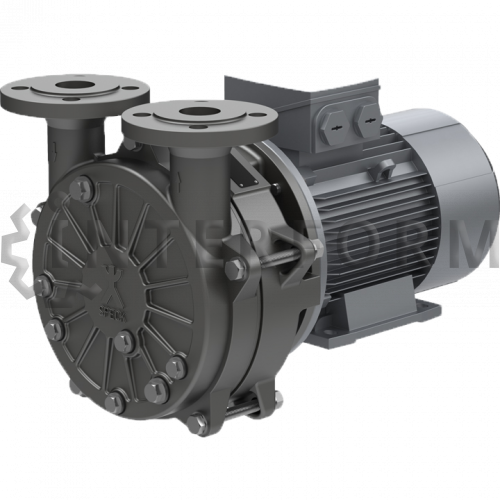

Liquid ring vacuum pump Speck Pumpen V-95/130/155/255

APPLICATION

Medical engineering:
Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization).
Plastics industry:
Extruder degasification. Vacuum calibration for the manufacturing of plastic profiles.
Food industry / Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Degasification (oxygen deprivation) of meat and sausage products.
Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam.

Technical parameters

Model: V-95/130/155/255
Series: V - serie
Pumped medium: dry and humidified gases
operational liquid max. 80 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 2.20 - 5.50 kW / 1450 min
Consumption m³/h: max. 199
Nominal pressure: P min = 33 mbar

Realization

Material: Stainless steel, Cast ironн, Copper alloy
Pressure line: G 3/8 - DN 65
Input line: G 3/8 - DN65
Seal type: Mechanical seal
