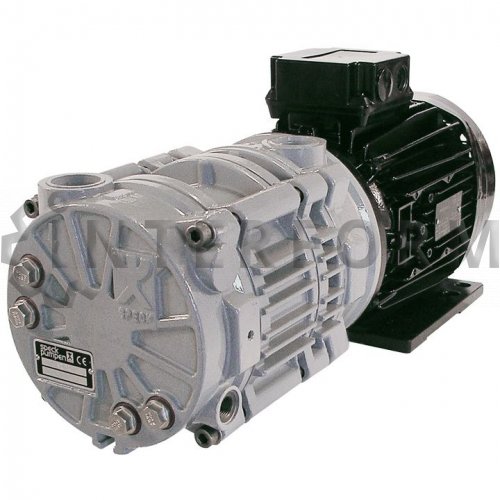

Liquid ring vacuum pump Speck Pumpen VZ-30/50, close-coupled pump with mechanical seal
APPLICATION
Medical engineering:
Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization).
Plastics industry:
Extruder degasification.
Food industry. Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Vacuum cooking of fruits, vegetables, pulps and mush.
Thickening and crystallisation of sugar under vacuum.
Chemical indstry:
Distillation / separation of liquids.
Technical parameters
Model: VZ-30/50
Series: VZ - serie
Pumped medium: dry and humidified gases
operational liquid max. 100 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
operational liquid max. 100 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 1.10-8.20 kW, 3~Mot
Nominal pressure: P min = 33 mbar
Realization
Material: Stainless Steel, Cast Iron, Copper Alloy
Pressure line: G1 DN40
Input line: G1 DN40
Seal type: Механическое
Description:
VZ Series – Robust and Low-noise Technology for Deep Vacuum Ranges
- Two-stage pumps
- Close-coupled version with B35 close-to-standard motors
- Base plate version with B3 standard motors
- Bracket version with B5 standard motors
- Close-coupled version upon request
Developed/designed for continuous operation
Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
Requirement-related design due to the use of diverse materials
With a maximum sound pressure level of 60 to 66 db(A) much more quiet than a conventional liquid ring vacuum pump
VZ 110 / 140 / 180 are alternatives to VH series due to identical connection dimensions
