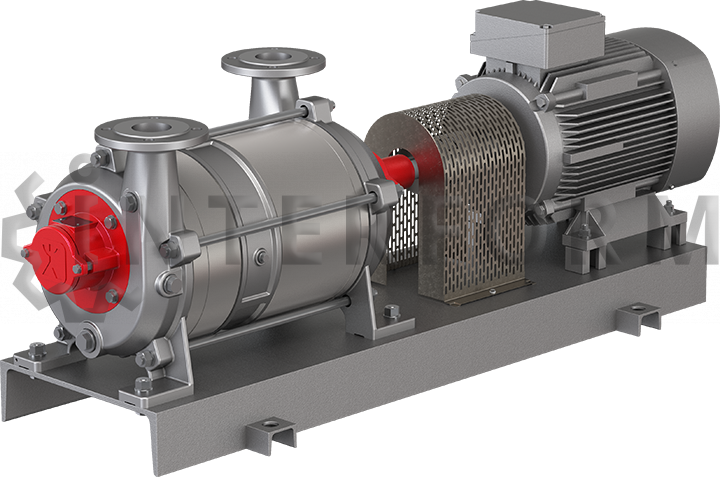

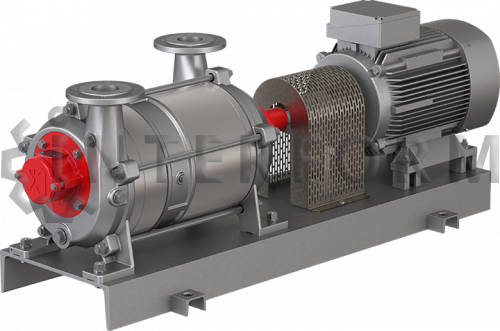

Liquid ring vacuum pump Speck Pumpen VHC- серии

APPLICATION

Medical engineering:
Sterilization of surgical instruments, textiles and beds (steam- and gas sterilization).
Plastics industry:
Extruder degasification.
Food industry / Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam.
Vacuum cooking of fruits, vegetables, pulps and mush.
Thickening and crystallisation of sugar under vacuum.
Chemical indstry:
Distillation / separation of liquids.
Recovery of condensates (solvents).
Drying of bulk material such as washing powder, fertilisers, salts, granular polymer, etc.

Technical parameters

Model: VHC- серии
Series: VHC - serie
Pumped medium: dry and humidified gases
operational liquid max. 100 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 3.00 -40.00 kW, 1~Mot / 3~Mot

Realization

Material: Stainless Steel, Cast Iron, Copper Alloy
Pressure line: DN 40 - DN 100
Input line: DN 40 - DN 100
Seal type: Механическое / Сальниковое

Available designations for this series

VHC - 110/140/180
VHC - 300/350/400
VHC - 500/600
VHC - 800/1200/1600

Description:

VHC Series – Innovative Technology for Deep Vacuum Ranges

  • Two-stage pumps in base plate version with B3 standard
  • Sound pressure level 66 - 79 db(A)

Developed/designed for continuous operation
Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
Requirement-related design due to the use of diverse materials
