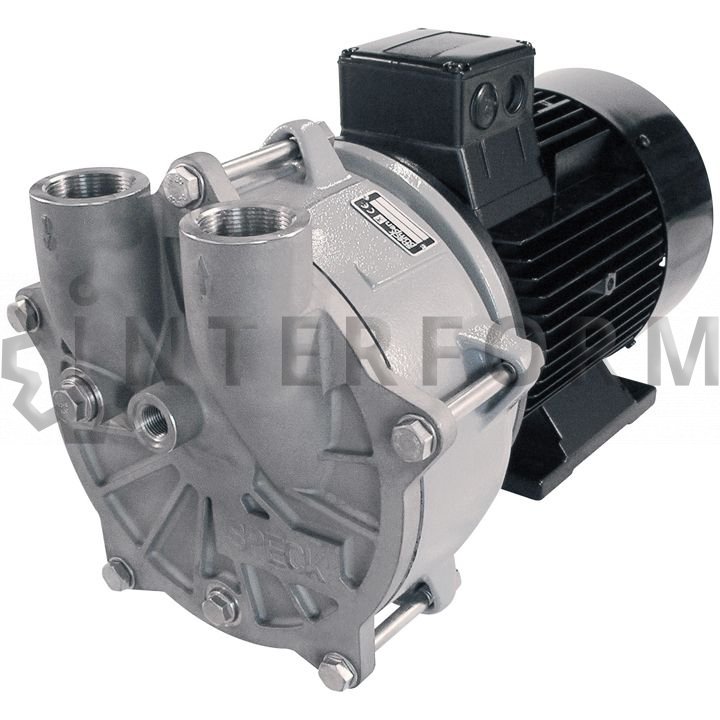

Liquid ring vacuum pump Speck Pumpen VG-30/55
APPLICATION
Plastics industry:
Vacuum calibration for the manufacturing of plastic profiles.
Food industry, Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam.
Removal of internal organs in the fish and poultry processing industry.
Chemical industry:
Distillation / separation of liquids.
Recovery of condensates (solvents).
Technical parameters
Model: VG-30/55
Series: VG - serie
Pumped medium: dry and humidified gases
delivery of liquids and minor impurities
operational liquid 80 °C max.
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
delivery of liquids and minor impurities
operational liquid 80 °C max.
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 0.75 – 8.20 kW / 2850 min (230/400V) / 3~Mot
Consumption m³/h: 26 - 48 max.
Nominal pressure: P min = 33 mbar
Realization
Material: Stainless steel
Pressure line: G1 - DN50
Input line: G1 - DN50
Seal type: Mechanical seal
Description:
VG Series – Valveless and low-maintenance
- Single-stage pump with valveless technology
- Close-coupled version with close-to-standard motors
- Bracket version with B5 standard motors
- Sound pressure level
Extended maintenance intervals due to less deposits and wear as almost free of dead spots
Easily accessible working chamber
Almost as powerful as V series
Suitable for delivery of liquids and minor impurities
Suitable for frequently changing operating conditions
