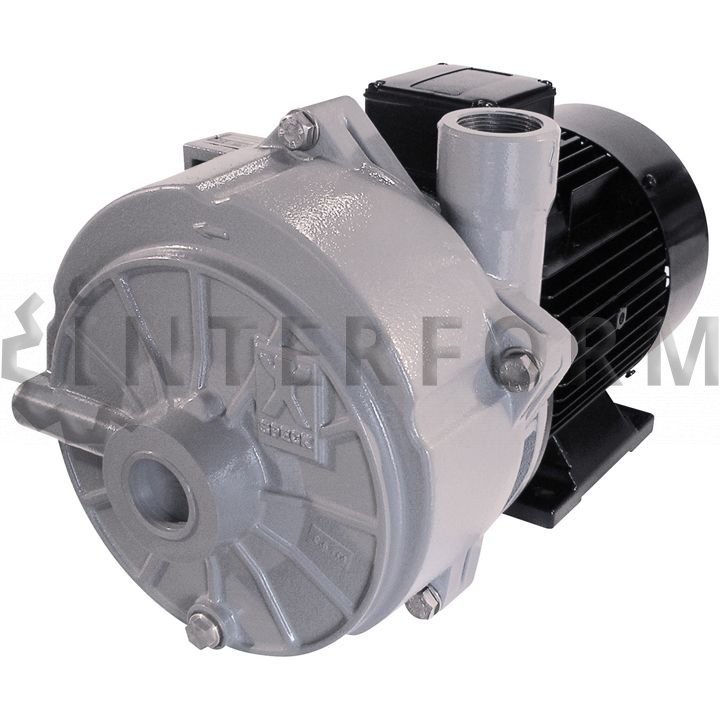

Liquid ring vacuum pump Speck Pumpen VN-95/125/180
APPLICATION
Further applications: Evacuation of central vacuum systems
Plastics industry: Vacuum calibration for the manufacturing of plastic profiles.
Production of polystyrene parts (EPP / EPS).
Chemical industry: Distillation / separation of liquids.
Recovery of condensates (solvents).
Technical parameters
Model: VN-95/125/180
Series: VN - serie
Pumped medium: dry and humidified gases
delivery of liquid up to 10 m³/h
operational liquid max. 80 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
delivery of liquid up to 10 m³/h
operational liquid max. 80 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 3.00 – 8.20 kW, 3~Mot
Nominal pressure: P min = 55 mbar
Realization
Material: Stainless Steel, Copper Alloy
Pressure line: G1 1/2
Input line: G1 1/2
Seal type: Mechanical seal
Available designations for this series
VN - 95/125/180
Description:
VN Series – For Large Quantities of Additional Liquid
- Single-stage pumps with valves and port cylinder
- Close-coupled version with B35 close-to-standard motors
- Bracket version with B5 standard motors
- Sound pressure level 65 db(A)
Up to 5-fold delivery of liquid compared to conventional liquid ring vacuum pumps
Stable suction capacity even when liquid is delivered
Easy and simple installation
Minimum operating costs due to demand-oriented power consumption
Patented hydraulic and assembly system
