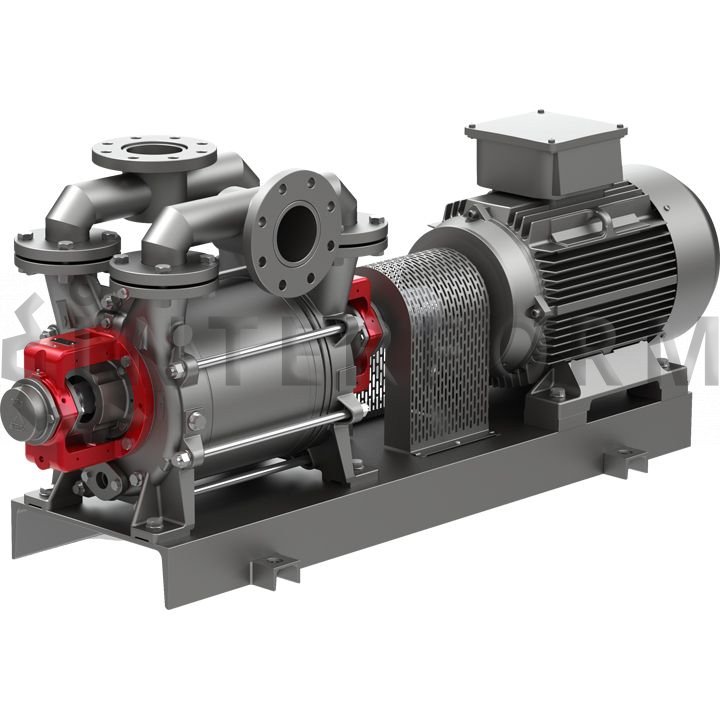

Liquid ring vacuum pump Speck Pumpen VU-300/450

APPLICATION

Food industry. Pharmaceutical industry:
Degasification of toothpaste, cremes, lotions, marzipan etc.
Degasification (oxygen deprivation) of meat and sausage products.
Extraction of condensates for the production of sugar, sugar-based sweets, fruit juice/pulp, jam.
Vacuum cooking of fruits, vegetables, pulps and mush.
Thickening and crystallisation of sugar under vacuum.
Removal of internal organs in the fish and poultry processing industry.
Chemical industry:
Distillation / separation of liquids.

Technical parameters

Model: VU-300/450
Series: VU - serie
Pumped medium: dry and humidified gases
operational liquid max. 100 °C
absorbed gas (dry) max. 200 °C
absorbed gas (saturated) max. 100 °C
Engine: 7.50 – 11 kW / 1450 min
Nominal pressure: P min = 150 mbar

Realization

Material: Stainless Steel, Cast Iron, Copper Alloy
Pressure line: G1 1/4 DN125
Input line: G1 1/4 DN125
Seal type: Mechanical seal

Description:

VU Series - Tried-and-tested Robust Technology for Rough Vacuum

  • Single-stage pumps in base plate version with B3 standard motors
  • Sound pressure level 66 - 76 db(A)

Operating point > 200 mbar
Tried-and-tested robust design
Developed/designed for continuous operation
Requirement-related design due to variation of individual components such as motor, coupling, base plate, etc.
Requirement-related design due to the use of diverse materials
